DORIS temperature sensors series
DORIS = Duct, Outdoor, Room, Immersion and Strap-on.
Duct temperature sensors TDN
Enclosure with IP65 protectionA neoprane gasket is supplied to ensure good seal onto the duct4 quick locking screws in the cover of the enclosureProbe lenght 200 mmPT1000 and NTC 10K sensing elements, other sensing elements on request.
Outdoor temperature sensors TON
IP65 protectionWith 2 meters cablePT1000 and NTC 10K sensing elements, other sensing elements on request.
Room temperature sensors TRN
Size 80x75x22 mmPT1000 and NTC 10K sensing elements, other sensing elements on request.

Immersion temperature sensors TIN
and stainless steel pocket SSP 100Enclosure with IP65 protection4 quick locking screws in the coverProbe lenght 100 mmPocket with BSP threaded type, British Standard Pipe threadPT1000 and NTC 10K sensing elements, other sensing elements on request.
Strap-on temperature sensors TSN
Including strap-on band 300 mmWith 1 meter cablePT1000 and NTC 10K sensing elements, other sensing elements on request.
Temperature Sensors and Temperature Transmitters
- Versions:
Room, duct, immersion, strap-on, flying lead and outdoor - Passive Sensors:
Thermistors Platina and Nickel
(NTC 10K, NTC 1.8K, NTC 20K, PTC,
PT100, PT1000, NI1000, NI1000 TK5000 etc.) - Active Transmitters:
0-10 Vdc or 4-20 mA
Room Temperature Sensors TRSSNTC 10K, NTC 1.8K, NTC 20K, PTC,
PT100, PT1000, NI1000, NI1000 TK5000 etc. ABS plastic enclosure or stainless steel enclosure
Room Temperature Transmitters TRTSOutput 0-10 Vdc or 4-20 mA 8 different temperature ranges in same unit,
selectable via jumpers on pcb:-20C to +150C, -50C to +50C, -20 to +80C, -30C to +60C,
0 to +40C, 0 to +50C, 0 to +100C and 0 to +150C. ABS plastic enclosure with or without LCD displayAlternative with stainless steel enclosure
Duct Temperature Sensors TDSHNTC 10K, NTC 1.8K, NTC 20K, PTC,
PT100, PT1000, NI1000, NI1000 TK5000 etc. IP65 protectionProbe lenghts: 50, 100, 150, 200, 250, 300 and 400 mm
Duct Temperature Transmitters TDTHOutput 0-10 Vdc or 4-20 mA 8 different temperature ranges in same unit,
selectable via jumpers on pcb:-20C to +150C, -50C to +50C, -20 to +80C, -30C to +60C,
0 to +40C, 0 to +50C, 0 to +100C and 0 to +150C. With or without LCD displayIP65 protectionProbe lenghts: 50, 100, 150, 200, 250, and 300 mm
Duct Temperature Sensors TDSFPT1000 and NTC 10K, others on request With 150 mm cableIP 56 protection200 mm probe length, other probe lenghts on requestMounting flange
Immersion Temperature Sensors TISB and TISSNTC 10K, NTC 1.8K, NTC 20K, PTC,
PT100, PT1000, NI1000, NI1000 TK5000 etc. IP65 protectionProbe/pocket lenghts: 50, 100, 150, 200, 250, 300 and 400 mmTISB with pocket in brass
TISS with pocket in stainless steel

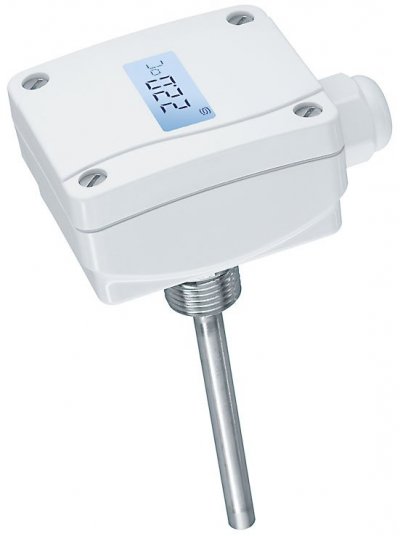

Immersion Temperature Transmitters
TITB and TITS Output 0-10 Vdc or 4-20 mA 8 different temperature ranges in same unit,
selectable via jumpers on pcb:-20C to +150C, -50C to +50C, -20 to +80C, -30C to +60C,
0 to +40C, 0 to +50C, 0 to +100C and 0 to +150C. With or without LCD displayProbe/pocket lenghts: 50, 100, 150, 200, 250 and 300 mmTITB with pocket in brass
TITS with pocket in stainless steelIP65 protection
Immersion Temperature Sensor TISCNTC 10K, NTC 1.8K, NTC 20K, PTC,
PT100, PT1000, NI1000, NI1000 TK5000 etc. Immersion lengths 50 and 100 mmStainless steel 1.45711.5 metre silicone cable (+180°C)IP 65 protection
Strap-On Temperature Sensors TSSHNTC 10K, NTC 1.8K, NTC 20K, PTC,
PT100, PT1000, NI1000, NI1000 TK5000 etc. IP 65 protectionIncluding tightening strap 300 m
Strap-On Temperature Transmitters TSTHOutput 0-10 Vdc or 4-20 mA 8 different temperature ranges in same unit,
selectable via jumpers on pcb:-20C to +150C, -50C to +50C, -20 to +80C, -30C to +60C,
0 to +40C, 0 to +50C, 0 to +100C and 0 to +150C. With or without LCD displayIP 65 protectionIncluding tightening strap 300 mm

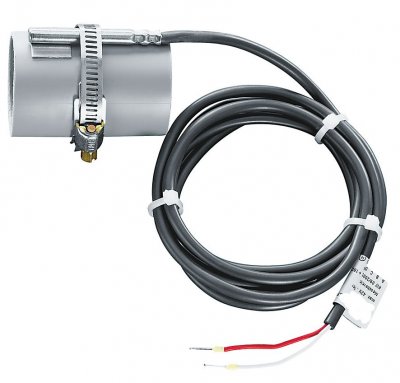

Strap-On Temperature Sensors TSSCNTC 10K, NTC 1.8K, NTC 20K, PTC,
PT100, PT1000, NI1000, NI1000 TK5000 etc. With 1.5 metre silicone cableIP 54 protectionIncluding tightening strap 300 mm
Outdoor Temperature Sensors TOSSNTC 10K, NTC 1.8K, NTC 20K, PTC,
PT100, PT1000, NI1000, NI1000 TK5000 etc. IP 65 protection

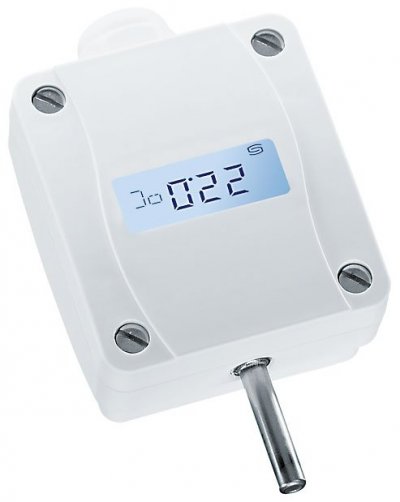

Outdoor Temperature Transmitters TOTPOutput 0-10 Vdc or 4-20 mA 8 different temperature ranges in same unit,
selectable via jumpers on pcb:-20C to +150C, -50C to +50C, -20 to +80C, -30C to +60C,
0 to +40C, 0 to +50C, 0 to +100C and 0 to +150C. With or without LCD display
|
|
|
|
 |
 |
|
 |
 |
 |
 |
|
 |
 |
|
|
|
|
|
